serv_xnl4v5 Module Reference

Functions/Subroutines
subroutine	y_gauleg (x1, x2, x, w, n)
subroutine	z_cmpcg (sigma, depth, grav_w, cg)
subroutine	z_intp1 (x1, y1, x2, y2, n1, n2, ierr)
subroutine	z_polyarea (xpol, ypol, npol, area)
subroutine	z_steps (x, dx, nx)
real function	z_root2 (func, x1, x2, xacc, iprint, ierr)
subroutine	z_upper (str)
real function	z_wnumb (w, d, grav_w)

Function/Subroutine Documentation

y_gauleg()

subroutine serv_xnl4v5::y_gauleg	(	real, intent(in)	x1,
		real, intent(in)	x2,
		real, dimension(n), intent(out)	x,
		real, dimension(n), intent(out)	w,
		integer, intent(in)	n
	)

Definition at line 670 of file swmod3.f90.

!-------------------------------------------------------------------
    INTEGER, intent(in) ::  n    ! Number of intervals
    real, intent(in)    ::  x1   ! lower limit of integration interval
    real, intent(in)    ::  x2   ! upper limit of integration interval
    real, intent(out)   ::  x(n) ! Positions for function evaluations
    real, intent(out)   ::  w(n) ! Weights
!-----------------------------------------------------------------------
    DOUBLE PRECISION EPS
    parameter(eps=3.d-14)
    INTEGER i,j,m
    DOUBLE PRECISION p1,p2,p3,pp,xl,xm,z,z1
!-----------------------------------------------------------------------
    m=(n+1)/2
    xm=0.5d0*(x2+x1)
    xl=0.5d0*(x2-x1)
    do i=1,m
      z=cos(3.141592654d0*(i-.25d0)/(n+.5d0))
 1    continue
      p1=1.d0
      p2=0.d0
      do j=1,n
        p3=p2
        p2=p1
        p1=((2.d0*j-1.d0)*z*p2-(j-1.d0)*p3)/j
      end do
      pp=n*(z*p1-p2)/(z*z-1.d0)
      z1=z
      z=z1-p1/pp
      if(abs(z-z1).gt.eps)goto 1
      x(i)=xm-xl*z
      x(n+1-i)=xm+xl*z
      w(i)=2.d0*xl/((1.d0-z*z)*pp*pp)
      w(n+1-i)=w(i)
    end do
!
    return

Here is the caller graph for this function:

z_cmpcg()

subroutine serv_xnl4v5::z_cmpcg	(	real, intent(in)	sigma,
		real, intent(in)	depth,
		real, intent(in)	grav_w,
		real, intent(out)	cg
	)

Definition at line 710 of file swmod3.f90.

!-----------------------------------------------------------------------------!
!
!   +-------+    ALKYON Hydraulic Consultancy & Research
!   |       |    Gerbrant van Vledder
!   |   +---+
!   |   | +---+
!   +---+ |   |
!         +---+
!
!
!     SWAN (Simulating WAves Nearshore); a third generation wave model
!     Copyright (C) 2004-2005  Delft University of Technology
!
!     This program is free software; you can redistribute it and/or
!     modify it under the terms of the GNU General Public License as
!     published by the Free Software Foundation; either version 2 of
!     the License, or (at your option) any later version.
!
!     This program is distributed in the hope that it will be useful,
!     but WITHOUT ANY WARRANTY; without even the implied warranty of
!     MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
!     GNU General Public License for more details.
!
!     A copy of the GNU General Public License is available at
!     http://www.gnu.org/copyleft/gpl.html#SEC3
!     or by writing to the Free Software Foundation, Inc.,
!     59 Temple Place, Suite 330, Boston, MA  02111-1307  USA
!
!
    implicit none
!
!  0. Update history
!
!     12/01/2001  Initial version
!     11/04/2001  Check included for the cases tat sigma < 0 or depth <0
!                 Result is cg = -10
!
!  1. Purpose:
!
!     Compute group velocity for a given radian frequency and depth
!
!  2. Method
!
!     Linear wave theory
!
!  3. Parameter list:
!
!Type   I/O           Name    Description
!------------------------------------------------------------------------------
    real, intent(in)  :: sigma  !  radian frequency (rad)
    real, intent(in)  :: depth  !  water depth (m)
    real, intent(in)  :: grav_w   !  gravitational acceleration (m/s^2)
    real, intent(out) :: cg     !  group velocity (m/s)
!
    real k                      !  wave number
!/A
!!    real z_wnumb                !  compute wave number
!/Z
!-----------------------------------------------------------------------------
    k = z_wnumb(sigma,depth,grav_w)
!
    if(depth <= 0. .or. sigma <= 0.) then
      cg = -10.
    else
      if(depth*k > 30.) then
        cg = grav_w/(2.*sigma)
      else
        cg = sigma/k*(0.5+depth*k/sinh(2.*depth*k))
      end if
    end if
!
    return

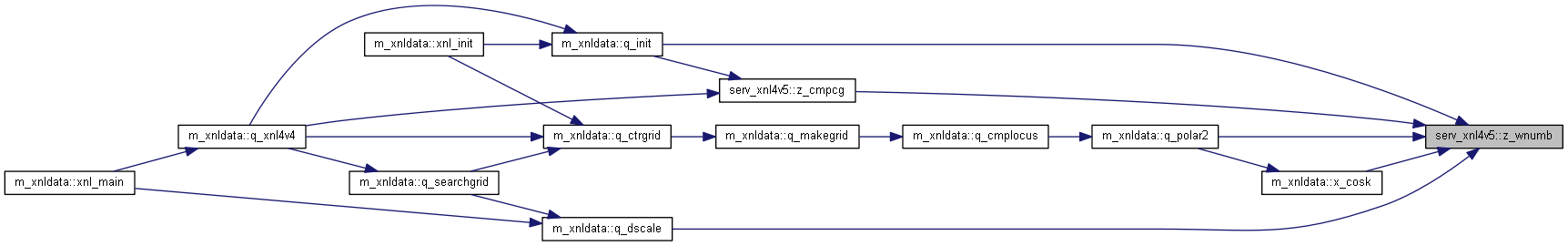

Here is the call graph for this function:

Here is the caller graph for this function:

z_intp1()

subroutine serv_xnl4v5::z_intp1	(	real, dimension(n1), intent(in)	x1,
		real, dimension(n1), intent(in)	y1,
		real, dimension(n2), intent(in)	x2,
		real, dimension(n2), intent(out)	y2,
		integer, intent(in)	n1,
		integer, intent(in)	n2,
		integer, intent(out)	ierr
	)

Definition at line 786 of file swmod3.f90.

!-----------------------------------------------------------------------------!
!
!   +-------+    ALKYON Hydraulic Consultancy & Research
!   |       |    Gerbrant van Vledder
!   |   +---+
!   |   | +---+
!   +---+ |   |
!         +---+
!
!
!     SWAN (Simulating WAves Nearshore); a third generation wave model
!     Copyright (C) 2004-2005  Delft University of Technology
!
!     This program is free software; you can redistribute it and/or
!     modify it under the terms of the GNU General Public License as
!     published by the Free Software Foundation; either version 2 of
!     the License, or (at your option) any later version.
!
!     This program is distributed in the hope that it will be useful,
!     but WITHOUT ANY WARRANTY; without even the implied warranty of
!     MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
!     GNU General Public License for more details.
!
!     A copy of the GNU General Public License is available at
!     http://www.gnu.org/copyleft/gpl.html#SEC3
!     or by writing to the Free Software Foundation, Inc.,
!     59 Temple Place, Suite 330, Boston, MA  02111-1307  USA
!
!
    implicit none
!
!  0. Update history
!
!     30/03/1999 Initical version
!      9/04/1999 Check included for monotonicity of x-data
!     11/10/1999 Error messages added and updated
!     18/01/2001 Check include if n1==1
!     24/01/2001 Check for equality of y2 data loosened if n2==1
!     13/09/2001 Documentation updated
!
!  1. Purpose
!
!     Interpolate function values
!
!  2. Method
!
!     Linear interpolation

!     If a requested point falls outside the input domain, then
!     the nearest point is used (viz. begin or end point of x1/y1 array
!
!     If the input array has only one point. A constant value is assumed
!
!  3. Parameter list
!
!     Name    I/O  Type  Description
!
    integer, intent(in) ::  n1   !   number of data points in x1-y1 arrays
    integer, intent(in) ::  n2   !   number of data points in x2-y2 arrays
    real, intent(in) ::  x1(n1)  !   x-values of input data
    real, intent(in) ::  y1(n1)  !   y-values of input data
    real, intent(in) ::  x2(n2)  !   x-values of output data
    real, intent(out) :: y2(n2)  !   y-values of output data
    integer, intent(out) :: ierr !   Error indicator
!
!  4. Subroutines used
!
!  5. Error messages
!
!     ierr = 0    No errors detected
!          = 1    x1-data not monotonic increasing
!          = 10   x2-data not monotonic increasing
!          = 11   x1- and x2 data not monotonic increasing
!          = 2    x1-data not monotonic decreasing
!          = 20   x1-data not monotonic decreasing
!          = 22   x1- and x2 data not monotonic decreasing
!
!          = 2    No variation in x1-data
!          = 3    No variation in x2-data is allowed if n2=1
!
!  6. Remarks
!
!     It is assumed that the x1- and x2-data are either
!     monotonic increasing or decreasing
!
!     If a requested x2-value falls outside the range of x1-values
!     it is assumed that the corresponding y2-value is equal to
!     the nearest boundary value of the y1-values
!
!     Example: x1 = [0 1 2 3]
!              y1 = [1 2 1 0]
!
!              x2 = -1,  y2 = 1
!              x2 =  5,  y2 = 0
!
!------------------------------------------------------------------------------
    integer i1,i2        ! counters
!
    real ds            ! step size
    real fac           ! factor in linear interpolation
    real s1,s2         ! search values
    real xmin1,xmax1   ! minimum and maximum of x1-data
    real xmin2,xmax2   ! minimum and maximum of x2-data
!
    real, parameter :: eps=1.e-20
!------------------------------------------------------------------------------
!   initialisation
!
    ierr = 0
!
!  check number of points of input array
!
    if(n1==1) then
      y2 = y1(1)
      goto 9999
    end if
!
!  check minimum and maximum data values
!
    xmin1 = minval(x1)
    xmax1 = maxval(x1)
    xmin2 = minval(x2)
    xmax2 = maxval(x2)
!
    if (abs(xmin1-xmax1) < eps .or. abs(x1(1)-x1(n1)) < eps) then
      ierr = 2
      goto 9999
    end if
!
    if ((abs(xmin2-xmax2) < eps .or. abs(x2(1)-x2(n2)) < eps) .and.  &
         n2 > 1) then
      ierr = 3
      goto 9999
    end if
!
! check input data for monotonicity
!
    if(x1(1) < x1(n1)) then             ! data increasing
      do i1=1,n1-1
        if(x1(i1) > x1(i1+1)) then
          ierr=1
          write(*,*) 'z_intp1: i1 x1(i1) x1(i1+1):',i1,x1(i1),x1(i1+1)
          goto 9999
        end if
      end do
!
      do i2=1,n2-1
        if(x2(i2) > x2(i2+1)) then
          ierr=ierr+10
          write(*,*) 'z_intp1: i2 x2(i2) x2(i2+1):',i2,x2(i2),x2(i2+1)
          goto 9999
        end if
      end do
!
    else                                 ! data decreasing
      do i1=1,n1-1
        if(x1(i1) < x1(i1+1)) then
          ierr=2
          write(*,*) 'z_intp1: i1 x1(i1) x1(i1+1):',i1,x1(i1),x1(i1+1)
          goto 9999
        end if
      end do
!
      do i2=1,n2-1
        if(x2(i2) < x2(i2+1)) then
          ierr=ierr + 20
          write(*,*) 'z_intp1: i2 x2(i2) x2(i2+1):',i2,x2(i2),x2(i2+1)
          goto 9999
        end if
      end do
    end if
!
!------------------------------------------------------------------------------
! initialize
!------------------------------------------------------------------------------
    if(ierr==0) then
      i1 = 1
      s1 = x1(i1)
!
      do i2 = 1,n2
        s2 = x2(i2)
        do while (s1 <= s2 .and. i1 < n1)
          i1 = i1 + 1
          s1 = x1(i1)
        end do
!
!  special point
!  choose lowest s1-value if x2(:) < x1(1)
!
        if(i1 ==1) then
          y2(i2) = y1(i1)
        else
          ds = s2 - x1(i1-1)
          fac = ds/(x1(i1)-x1(i1-1))
          y2(i2) = y1(i1-1) + fac*(y1(i1)-y1(i1-1))
        end if
!
! special case at end: choose s2(n2) > s1(n1), choose last value of y1(1)
!
        if(i2==n2 .and. s2>s1) y2(n2) = y1(n1)
      end do
    end if
!
 9999 continue
!
    return

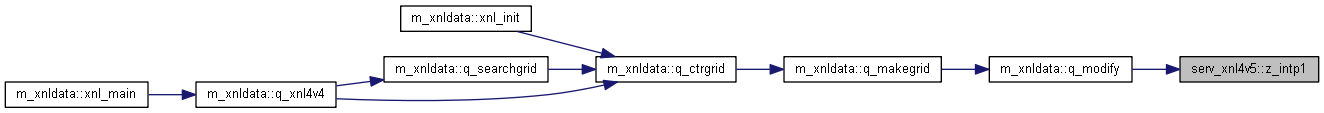

Here is the caller graph for this function:

z_polyarea()

subroutine serv_xnl4v5::z_polyarea	(	real, dimension(npol), intent(in)	xpol,
		real, dimension(npol), intent(in)	ypol,
		integer, intent(in)	npol,
		real, intent(out)	area
	)

Definition at line 996 of file swmod3.f90.

!-----------------------------------------------------------------------------!
!
!   +-------+    ALKYON Hydraulic Consultancy & Research
!   |       |    P.O. Box 248
!   |   +---+    8300 AE Emmeloord
!   |   | +---+  Tel: +31 527 620909
!   +---+ |   |  Fax: +31 527 610020
!         +---+  http://www.alkyon.nl
!
!     Gerbrant van Vledder
!
!
!     SWAN (Simulating WAves Nearshore); a third generation wave model
!     Copyright (C) 2004-2005  Delft University of Technology
!
!     This program is free software; you can redistribute it and/or
!     modify it under the terms of the GNU General Public License as
!     published by the Free Software Foundation; either version 2 of
!     the License, or (at your option) any later version.
!
!     This program is distributed in the hope that it will be useful,
!     but WITHOUT ANY WARRANTY; without even the implied warranty of
!     MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
!     GNU General Public License for more details.
!
!     A copy of the GNU General Public License is available at
!     http://www.gnu.org/copyleft/gpl.html#SEC3
!     or by writing to the Free Software Foundation, Inc.,
!     59 Temple Place, Suite 330, Boston, MA  02111-1307  USA
!
!
!  0. Update history
!
!     0.01  12/06/2003  Initial version
!
!  1. Purpose
!
!     Computes area of a closed polygon
!
!  2. Method
!
!     The area of the polygon
!
!  3. Parameter list
!
!     Name    I/O  Type  Description
!
    integer, intent(in)  ::  npol       ! Number of points of polygon
    real, intent(in)     ::  xpol(npol) ! x-coodinates of polygon
    real, intent(in)     ::  ypol(npol) ! y-coordinates of polygon
    real, intent(out)    ::  area       ! area of polygon
!
!  4. Subroutines used
!
!  5. Error messages
!
!  6. Remarks
!
    integer ipol,ipol1         ! counters
    real xmin,xmax,ymin,ymax   ! minima and maxima of polygon
    real xmean,ymean           ! mean values
    real xa,ya,xb,yb           ! temporary variables
    real sumx,sumy             ! sums
    real darea                 ! piece of area
!-------------------------------------------------------------------------------
    if(npol<=1) then
      crf  = 0.
      xz   = 0.
      yz   = 0.
      area = 0.
      return
    end if
!
! compute minimum and maximum coordinates
!
    xmin = minval(xpol)
    xmax = maxval(xpol)
    ymin = minval(ypol)
    ymax = maxval(ypol)
!
!  compute mean of range of x- and y-coordinates
!
    xmean = 0.5*(xmin + xmax)
    ymean = 0.5*(ymin + ymax)
!
! compute area and center of gravity
! do loop over all line pieces of polygon
!
    area = 0.
    sumx = 0.
    sumy = 0.
!
    do ipol=1,npol
      ipol1 = ipol + 1
      if(ipol==npol) ipol1 = 1
      xa = xpol(ipol)
      ya = ypol(ipol)
      xb = xpol(ipol1)
      yb = ypol(ipol1)
!
      darea = 0.5*((xa-xmean)*(yb-ymean) - (xb-xmean)*(ya-ymean))
      area  = area + darea
      sumx  = sumx + darea*(xa+xb+xmean)/3.
      sumy  = sumy + darea*(ya+yb+ymean)/3.
    end do
!
    return

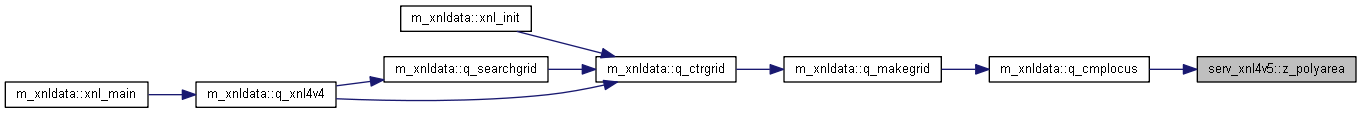

Here is the caller graph for this function:

z_root2()

real function serv_xnl4v5::z_root2	(	external	func,
		real, intent(in)	x1,
		real, intent(in)	x2,
		real, intent(in)	xacc,
		integer, intent(in)	iprint,
		integer, intent(out)	ierr
	)

Definition at line 1177 of file swmod3.f90.

!-----------------------------------------------------------------------------!
!
!   +-------+    ALKYON Hydraulic Consultancy & Research
!   |       |
!   |   +---+
!   |   | +---+
!   +---+ |   |
!         +---+
!
!
!     SWAN (Simulating WAves Nearshore); a third generation wave model
!     Copyright (C) 2004-2005  Delft University of Technology
!
!     This program is free software; you can redistribute it and/or
!     modify it under the terms of the GNU General Public License as
!     published by the Free Software Foundation; either version 2 of
!     the License, or (at your option) any later version.
!
!     This program is distributed in the hope that it will be useful,
!     but WITHOUT ANY WARRANTY; without even the implied warranty of
!     MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
!     GNU General Public License for more details.
!
!     A copy of the GNU General Public License is available at
!     http://www.gnu.org/copyleft/gpl.html#SEC3
!     or by writing to the Free Software Foundation, Inc.,
!     59 Temple Place, Suite 330, Boston, MA  02111-1307  USA
!
!
!  0. Update history
!
!     Version Date       Modification
!
!     0.01    29/11/1999 Initial version
!     0.02    07/11/1999 Test added to check boundaries, and reverse if necessary
!                        Bug fixed in assigning answer
!     0.03    02/09/2002 Maximum number of iterations set to 20, instead of 10
!
!  1. Purpose
!
!     Find zero crossing point of function FUNC between the
!     initial values on either side of zero crossing
!
!  2. Method
!
!     Ridders method of root finding
!
!     adapted from routine zridddr
!     Numerical Recipes
!     The art if scientific computing, second edition, 1992
!     W.H. Press, S.A. Teukolsky, W.T. Vetterling and B.P. Flannery
!
!  3. Parameter list
!
!     Name    I/O  Type  Description
!
!     func     i    r    real function
!     x1       i    r    initial x-value on left/right side of zero-crossing
!     x2       i    r    initial x-value on right/left side of zero-crossing
!     xacc     i    r    accuracy, used as |x1(i)-x2(i)|< xacc
!     iprint   i    i    Output channel and test level
!     ierr     o    i    Error indicator
!
!  4. Subroutines used
!
!     Func      user supplied real function
!
!  5. Error messages
!
!     ierr = 0   No errors occured during iteration process
!            1   Iteration halted in dead end, this combination may NEVER occur
!            2   Maximum number of iterations exceeded
!            3   Solution jumped outside interval
!
!  6. Remarks
!
!     It is assumed that the x1- and x2-coordinate lie
!     on different sides of the actual zero crossing
!
!     The input parameter IPRINT is used to generate test output.
!     If IPRINT==0, no test output is created
!              > 0, test output is directed to the file connected to unit LUPRINT=IPRINT
!                   if no file is connected to this unit, no output is written
!
!
    implicit none
!
    real func                         ! external function
    real, intent (in) :: x1           ! x-value at one side of interval
    real, intent (in) :: x2           ! x-value at other side of interval
    real, intent (in) :: xacc         ! requested accuracy
    integer, intent (in) :: iprint    ! number of output channel, only used when
    integer, intent (out) :: ierr     ! error indicator
!
    real unused                       ! default value
    real zriddr                       ! intermediate function value
    real xx1,xx2,xx                   ! local boundaries during iteration
    integer maxit                     ! maximum number of iteration
    integer luprint                   ! unit of test output
    logical lopen                     ! check if a file is opened

    parameter(maxit = 20)
    external func
!
    integer iter      ! counter for number of iterations
    real fh           ! function value FUNC(xh)
    real fl           ! function value FUNC(xl)
    real fm           ! function value FUNC(xm)
    real fnew         ! function value FUNC(xnew)
    real s            ! temp. function value, used for inverse quadratic interpolation
    real xh           ! upper (high) boundary of interval
    real xl           ! lower boundary of interval
    real xm           ! middle point of interval
    real xnew         ! new estimate according to Ridders method
!
    ierr   = 0        ! set error level
    unused =-1.11e30  ! set start value
!
    xx1 = x1          ! copy boundaries of interval to local variables
    xx2 = x2
!
    luprint = iprint
!
    if(luprint > 0) then
      inquire(unit=luprint,opened=lopen)
      if(.not.lopen) then
        luprint = 0
        write(*,'(a,i4)') 'Z_ROOT2: invalid unit number:',iprint
      end if
    end if
!
! check boundaries on requirement x2 > x1
!
    if(xx1 > xx2) then
      xx  = xx1
      xx1 = xx2
      xx2 = xx
    end if
!
    fl = func(xx1)
    fh = func(xx2)
!
!     if(luprint > 0) write(luprint,'(a,4e13.5)')
!    &  'Z_ROOT2: xx1 xx2 fl fh:',xx1,xx2,fl,fh
!
    if((fl > 0. .and. fh < 0.) .or. (fl < 0. .and. fh > 0.))then
       xl = xx1
       xh = xx2
       zriddr = unused
!
       do iter=1,maxit
          xm = 0.5*(xl+xh)
          fm = func(xm)
          s = sqrt(fm**2-fl*fh)
          if(s == 0.) goto 9000
          xnew = xm+(xm-xl)*(sign(1.,fl-fh)*fm/s)
!
!           if(luprint>0) write(luprint,'(a,4e13.5)')
!&          'Z_ROOT2: xm,fm,s,xnew:',xm,fm,s,xnew
!
          if (abs(xnew-zriddr) <= xacc) then
!              if(luprint>0) write(luprint,'(a)') 'Z_ROOT2: xnew=zriddr'
            goto 9000
          end if
!
          zriddr = xnew
          fnew = func(zriddr)
          if (fnew == 0.) goto 9000
!
          if(sign(fm,fnew) /= fm) then
             xl = xm
             fl = fm
             xh = zriddr
             fh = fnew
          elseif(sign(fl,fnew) /= fl) then
             xh = zriddr
             fh = fnew
          elseif(sign(fh,fnew) /= fh) then
             xl = zriddr
             fl = fnew
          else
             ierr = 1
             goto 9000
          endif
!
          if(abs(xh-xl) <= xacc) goto 9000
!
          if(luprint > 0) write(luprint,'(a,i4,5e14.6)')      &
          'Z_ROOT2: iter,x1,x2,|x1-x2|,xacc,z:', iter,xl,xh,  &
           abs(xl-xh),xacc,fnew
!
       end do
       ierr = 2
       if(luprint > 0) write(luprint,'(a)') 'Z_ROOT2: -> ierr=2'
       goto 9000
    else if (fl == 0.) then
      zriddr = xx1
    else if (fh == 0.) then
      zriddr = xx2
    else
      ierr = 3
      goto 9999
! 'root must be bracketed in zriddr'
    endif
!
 9000 continue
!
    z_root2 = zriddr
!
    if(luprint > 0) write(luprint,'(a,2i3,5e13.5)')                &
          'Z_ROOT2: ierr,iter,xl,xh,acc,x0,z0:', ierr,iter,xl,xh,xacc,  &
                                                 z_root2,func(z_root2)
!
 9999 continue
!
    return

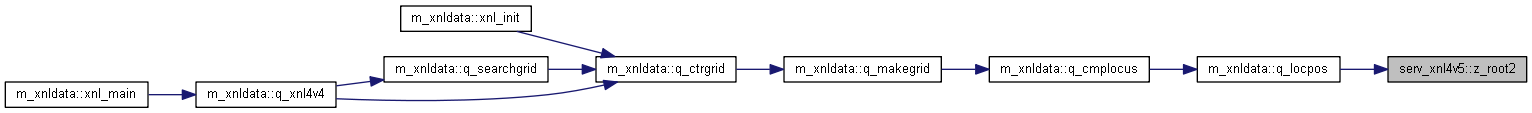

Here is the caller graph for this function:

z_steps()

subroutine serv_xnl4v5::z_steps	(	real, dimension(nx), intent(in)	x,
		real, dimension(nx), intent(out)	dx,
		integer, intent(in)	nx
	)

Definition at line 1107 of file swmod3.f90.

!-----------------------------------------------------------------------------!
!
!
!   +-------+    ALKYON Hydraulic Consultancy & Research
!   |       |    Gerbrant van Vledder
!   |   +---+
!   |   | +---+  Creation date:  September 28, 1998
!   +---+ |   |  Last Update:    march 19, 2003
!         +---+
!
!
!     SWAN (Simulating WAves Nearshore); a third generation wave model
!     Copyright (C) 2004-2005  Delft University of Technology
!
!     This program is free software; you can redistribute it and/or
!     modify it under the terms of the GNU General Public License as
!     published by the Free Software Foundation; either version 2 of
!     the License, or (at your option) any later version.
!
!     This program is distributed in the hope that it will be useful,
!     but WITHOUT ANY WARRANTY; without even the implied warranty of
!     MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
!     GNU General Public License for more details.
!
!     A copy of the GNU General Public License is available at
!     http://www.gnu.org/copyleft/gpl.html#SEC3
!     or by writing to the Free Software Foundation, Inc.,
!     59 Temple Place, Suite 330, Boston, MA  02111-1307  USA
!
!
!  0. Update history
!
!     19/03/2003   Input argument defined using intent option
!                  check included nx > 0
!
!  1. Purpose
!
!     Compute bandwidth of spectral discretization
!
    implicit none
!
    integer, intent(in) :: nx     ! Number of elements in array
    real, intent(in)    :: x(nx)  ! Input data array with elements
    real, intent(out)   :: dx(nx) ! Output array with step sizes
!
    integer ix                    ! counter
!------------------------------------------------------------------------------
    if (nx<1) then
      return
!
    elseif (nx==1) then
      dx = 0
    else
      do ix=2,nx-1
        dx(ix) = 0.5 * (x(ix+1) - x(ix-1))
      end do
!
      if (nx >= 4) then
        dx(1)  = dx(2)*dx(2)/dx(3)
        dx(nx) = dx(nx-1)*dx(nx-1)/dx(nx-2)
      else
        dx(1)  = dx(2)
        dx(nx) = dx(nx-1)
      end if
    end if
!
    return

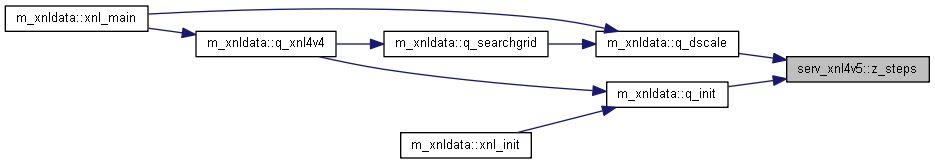

Here is the caller graph for this function:

z_upper()

subroutine serv_xnl4v5::z_upper

(

character(len=*), intent(inout)

str

)

Definition at line 1397 of file swmod3.f90.

!-----------------------------------------------------------------------------!
!
!   +-------+    ALKYON Hydraulic Consultancy & Research
!   |       |    Gerbrant van Vledder
!   |   +---+
!   |   | +---+  Creation date:  July 3,1998
!   +---+ |   |  Last Update:
!         +---+
!
!
!     SWAN (Simulating WAves Nearshore); a third generation wave model
!     Copyright (C) 2004-2005  Delft University of Technology
!
!     This program is free software; you can redistribute it and/or
!     modify it under the terms of the GNU General Public License as
!     published by the Free Software Foundation; either version 2 of
!     the License, or (at your option) any later version.
!
!     This program is distributed in the hope that it will be useful,
!     but WITHOUT ANY WARRANTY; without even the implied warranty of
!     MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
!     GNU General Public License for more details.
!
!     A copy of the GNU General Public License is available at
!     http://www.gnu.org/copyleft/gpl.html#SEC3
!     or by writing to the Free Software Foundation, Inc.,
!     59 Temple Place, Suite 330, Boston, MA  02111-1307  USA
!
!
!  0. Update history
!
!  1. Purpose
!
!     Transform all lower capitals to UPPER CAPITALS in string STR
!
!  2. Method
!
!  3. Parameter list
!
!     Name    I/O  Type  Description
!
    implicit none
    character(len=*), intent(inout) :: str  ! Character string to be converted
!
!  4. Subroutines used
!
!  5. Error messages
!
!  6. Remarks
!
    integer nlen
    integer i,ial,iau,izl
!
    nlen = len(str)
!
    ial = ichar('a')
    iau = ichar('A')
    izl = ichar('z')
!
    do i=1,nlen
      if(ichar(str(i:i)) >= ial.and. ichar(str(i:i)) <= izl) then
        str(i:i) = char(ichar(str(i:i))-ial+iau)
      end if
    end do
!
    return

Here is the caller graph for this function:

z_wnumb()

real function serv_xnl4v5::z_wnumb	(	real, intent(in)	w,
		real, intent(in)	d,
		real, intent(in)	grav_w
	)

Definition at line 1467 of file swmod3.f90.

!-----------------------------------------------------------------------------!
!
!   +-------+    ALKYON Hydraulic Consultancy & Research
!   |       |    Gerbrant van Vledder
!   |   +---+
!   |   | +---+
!   +---+ |   |
!         +---+
!
!
!     SWAN (Simulating WAves Nearshore); a third generation wave model
!     Copyright (C) 2004-2005  Delft University of Technology
!
!     This program is free software; you can redistribute it and/or
!     modify it under the terms of the GNU General Public License as
!     published by the Free Software Foundation; either version 2 of
!     the License, or (at your option) any later version.
!
!     This program is distributed in the hope that it will be useful,
!     but WITHOUT ANY WARRANTY; without even the implied warranty of
!     MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
!     GNU General Public License for more details.
!
!     A copy of the GNU General Public License is available at
!     http://www.gnu.org/copyleft/gpl.html#SEC3
!     or by writing to the Free Software Foundation, Inc.,
!     59 Temple Place, Suite 330, Boston, MA  02111-1307  USA
!
!
    implicit none
!
!  0. Update history
!
!     01/04/1999  Initial version
!     12/01/2001  grav added as input parameter
!     11/04/2001  Check included for the case w < 0 or d < 0
!
!  1. Purpose:
!
!     Compute wave number k for a given radian frequency and water depth
!
!  2. Method
!
!     finite depth linear dispersion relation, using a Pade approximation
!
!  3. Parameter list:
!
!Type   I/O           Name     Description
!------------------------------------------------------------------------------
    real, intent(in)  ::  w      ! radian frequency (rad)
    real, intent(in)  ::  d      ! water depth (m)
    real, intent(in)  ::  grav_w   ! gravitational acceleration (m/s^2)
!
!  4. Subroutines used
!
!  5. Error messages
!
!  6. Remarks
!
!     The Pade approximation has been described in Hunt, 198.
!
    real x,xx,y,omega
!
    if(d<=0 .or. w<= 0.) then
      z_wnumb = -10.
    else
      omega   = w**2/grav_w
      y       = omega*d
      xx      = y*(y+1./(1.+y*(0.66667+y*(0.35550+y*(0.16084+y*     &
                (0.06320+y*(0.02174+y*(0.00654+y*(0.00171+y*        &
                (0.00039+y*0.00011))))))))))
      x       = sqrt(xx)
      z_wnumb = x/d
    end if
!
    return

Here is the caller graph for this function:
